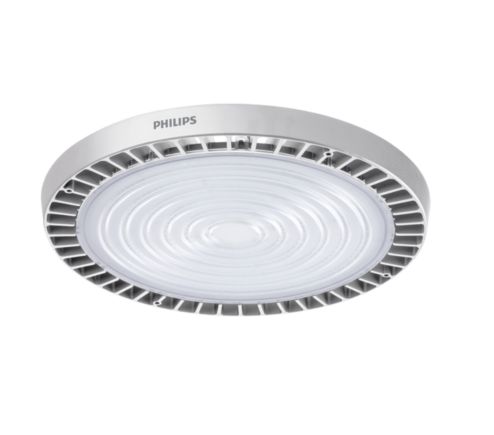

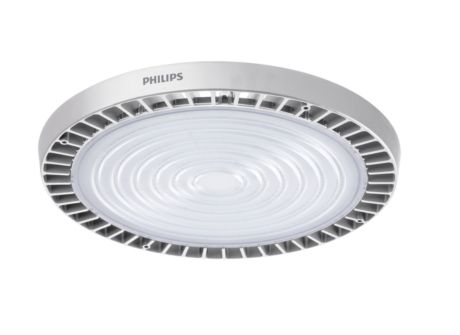

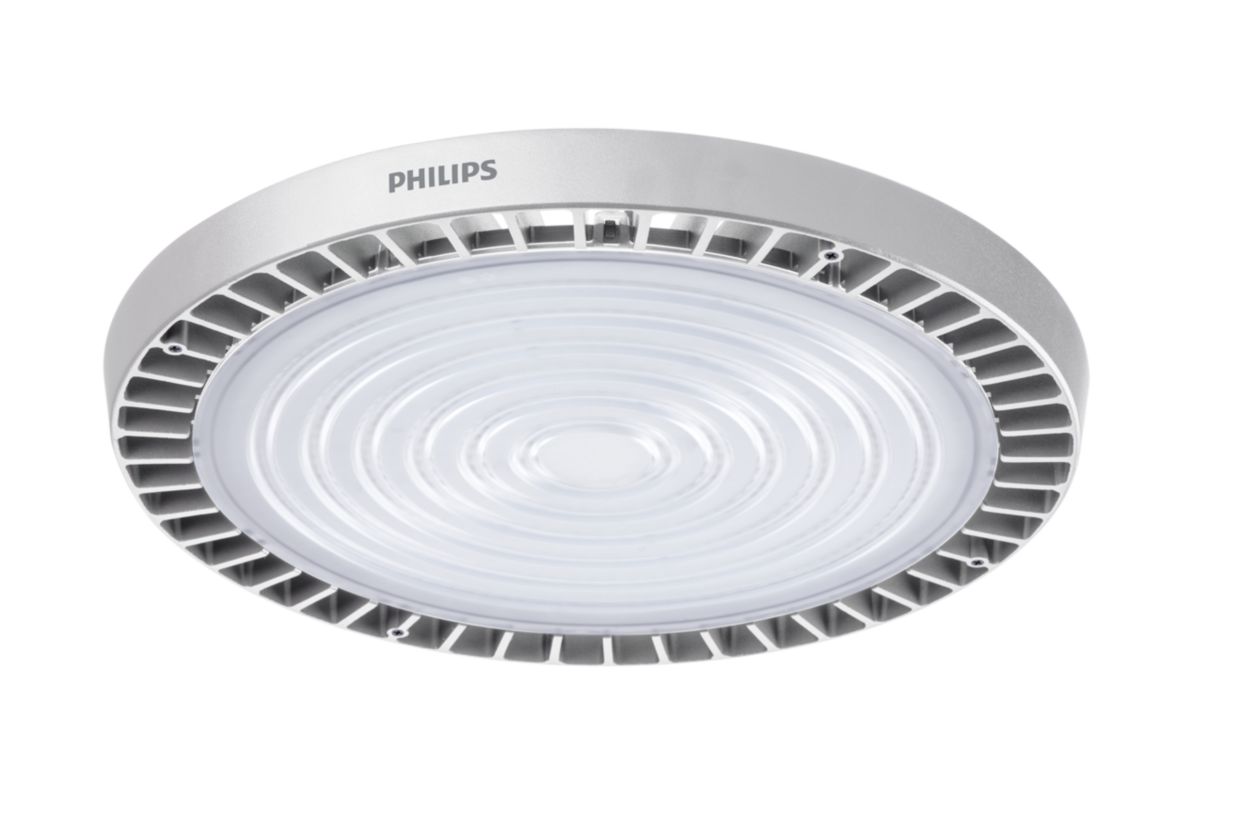

BY518P LED300/NW PSU NB GM

Specifications Show all

General information

Lamp colour code	840 neutral white
Optical cover/lens type	Lens
Control interface	-
Protection class IEC	Safety class I (I)
CE mark	CE mark
Number of products on MCB (16 A type B)	6
Light source engine type	LED

Operating and electrical

Input Voltage	220-240 V
Input frequency	50 or 60 Hz
Inrush current	0.88 A
Power factor (min.)	0.95

Controls and dimming

Dimmable

No

Mechanical and housing

Housing material	Aluminium
Optical cover/lens material	Polycarbonate
Optical cover/lens finish	Matte
Overall height	99 mm
Overall diameter	416 mm
Effective projected area	0.06 m²
Colour	Grey

Approval and application

Ingress protection code	IP65  [ Dust penetration-protected, jet-proof]
Mech. impact protection code	IK06  [ 1 J]

Initial performance (IEC compliant)

Initial luminous flux (system flux)	30000 lm
Luminous flux tolerance	+/-10%
Initial LED luminaire efficacy	143 lm/W
Lamp colour temperature	4000 K
Colour Rendering Index	>80
Initial chromaticity	(0.385, 0.380) SDCM<5
Initial input power	207 W
Power consumption tolerance	+/-10%

Application conditions

Ambient temperature range

-20 to +45 °C

Product data

Full product code	871951453652499
Order product name	BY518P LED300/NW PSU NB GM
EAN/UPC – product	8719514536524
Order code	911401648607
SAP numerator – quantity per pack	1
Numerator – packs per outer box	2
SAP material	911401648607
Net Weight (Piece)	3.690 kg
