Product family information

Project owners and developers want to create a pleasant environment at minimum cost, but without compromising on the quality of the lighting.Vaya LED Spot is an affordable, highly reliable solution that minimizes the initial investment while offering a choice of attractive lighting effects that can bring a property to life. Multiple mounting bracket options mean this robust, simply designed fixture is also extremely easy to install.

Benefits

High reliability

Flexibility in lighting effect

Easy installation

Features

High-quality high-power LEDs and integrated LED driver

Lifetime over 25,000 hours (70% lumen maintenance) @ Ta=25 ºC

Robust design – IP65 protection and IK08 impact resistance

Choice of beam angle – 12, 24 and 36º

Available in warm white (3000 K), neutral white (4000 K) and RGB versions

Applications

Façade lighting

Accent lighting

Parks and gardens

Downloads

Leaflets

Family - full data sheet PDF 383.1 kB

Visuals

Product family details

General

Type	BGP310 (1 or 3-LED, surface mounted version) BGP311 (1 or 3-LED, clip mounted version)
Light source	Integral LED-module
Power	BGP310 / BGP311 1 x LED: 2.15 W BGP310 / BGP311 3 x LED: 6 W
Beam angle	12, 24 or 36º
Luminous flux	BGP310 / BGP311 1 x LED: WW 60 lm, NW 80 lm, Amber > 20 lm BGP310 / BGP311 3 x LED: WW 180 lm, NW 240 lm, Amber > 60 lm
Luminaire efficacy	BGP310 / BGP311 1 x LED: WW 35 lm/W, NW 45 lm/W, AM 13 lm/W BGP310 / BGP311 3 x LED: WW 36 lm/W, NW 42 lm/W, AM 11 lm/W
Correlated Color Temperature	WW: 3000 K, NW: 4000 K, AM: 584.5-597 nm
Color Rendering Index	WW: 85, NW: 70, AM: 590 nm
Maintenance of lumen output - L70	25,000 hours at 35ºC
Operating temperature range	-20ºC < T
Driver	Built-in (self ballasted LED-module)
Mains voltage	1 x LED version: 24 V DC 3 x LED version: 100-240 V AC / 50-60 Hz
Dimming	No
Controls system input	1 x LED version: max. 3.5 V DC 3 x LED version: max. 10 V DC
Optic	Narrow beam angle 12º Medium beam angles 24 or 36º
Optical cover	Transparent glass, tempered
Material	Housing: die-cast aluminum Gasket: silicone rubber, heat-resistant
Color	Housing: RAL 9006 Front and rear cover: RAL 9011
Connection	Push in connector in 3 poles accepting wires 3 core x 1.0 mm
Installation	BGP310: surface or landscape mounted BGP311: clip mounted
Cable gland	1 x M12

Questions about our systems, services or products?

0800 10 LAMPU (52678)

Find out where to buy

We love your feedback

Tell us what you think of our website

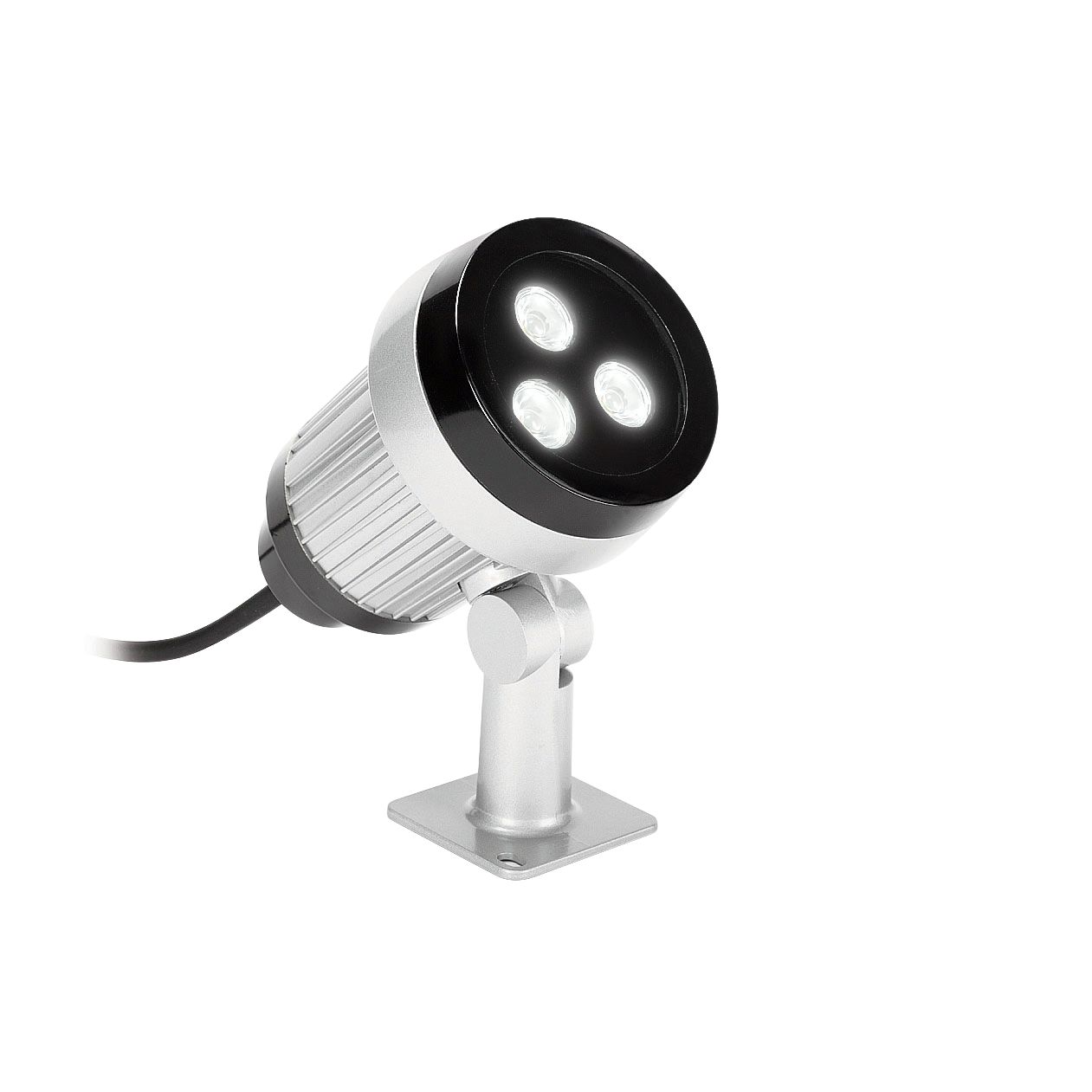

LED Outdoor Spot BGP310/311
