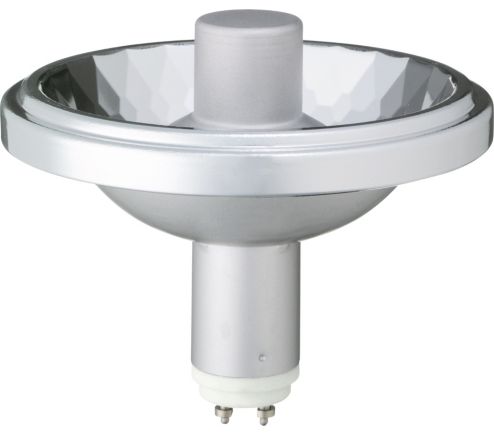

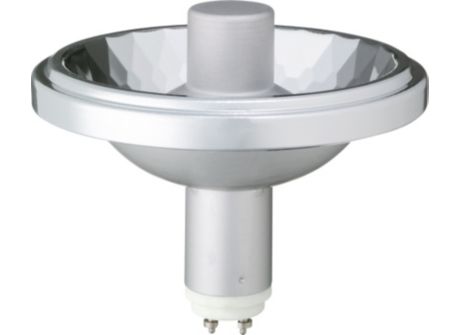

MASTERC CDM-R111 70W/942 GX8.5 24D 1CT/6

Specifications Show all

Operating and Electrical

Voltage (Nom)	92 V
Voltage (Nom)	92 V
Warm-up time to 60% light	120 s
Power Consumption	73.2 W

Product Data

Order product name	MASTERC CDM-R111 70W/942 GX8.5 24D 1CT/6
Full product name	MASTERC CDM-R111 70W/942 GX8.5 24D 1CT/6
Order code	928096905330
Full product code	871150021393810
Numerator - Packs per outer box	6
Numerator - Quantity Per Pack	1
Material number (12NC)	928096905330
EAN/UPC - Case	8711500213945

Approval and Application

Mercury (Hg) Content (Nom)	6.3 mg
Energy Consumption kWh/1000 h	74 kWh
Mercury (Hg) Content (Max)	6.6 mg
EPREL Registration Number	473360
Energy Efficiency Class	G

Controls and Dimming

Dimmable

No

Mechanical and Housing

Bulb Finish	Reflector
Bulb Shape	R111  [R 111mm]

General Information

Switching Cycle	1,000
Operating Position	UNIVERSAL  [Any or Universal (U)]
Cap-Base	GX8.5  [GX8.5]
Flux measurement reference	Narrow Cone

Light Technical

Chromaticity Coordinate Y (Nom)	0.366
Color rendering index (CRI)	96
Color Designation	Cool White (CW)
LLMF At End Of Nominal Lifetime (Nom)	60 %
Luminous Flux	2,800 lumen
Color Code	942  [CCT of 4200K]
Beam Angle (Nom)	24 degree(s)
Chromaticity Coordinate X (Nom)	0.371
Correlated Color Temperature (Nom)	4200 K
Luminous Flux in 90° Cone (Rated)	2,800 lumen
Luminous Intensity (Nom)	14,300 cd
