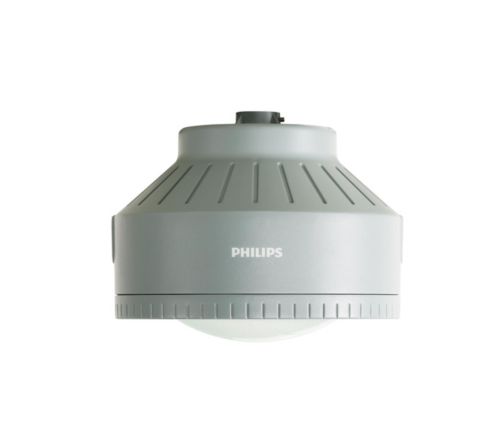

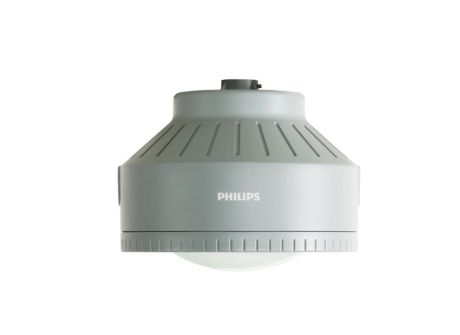

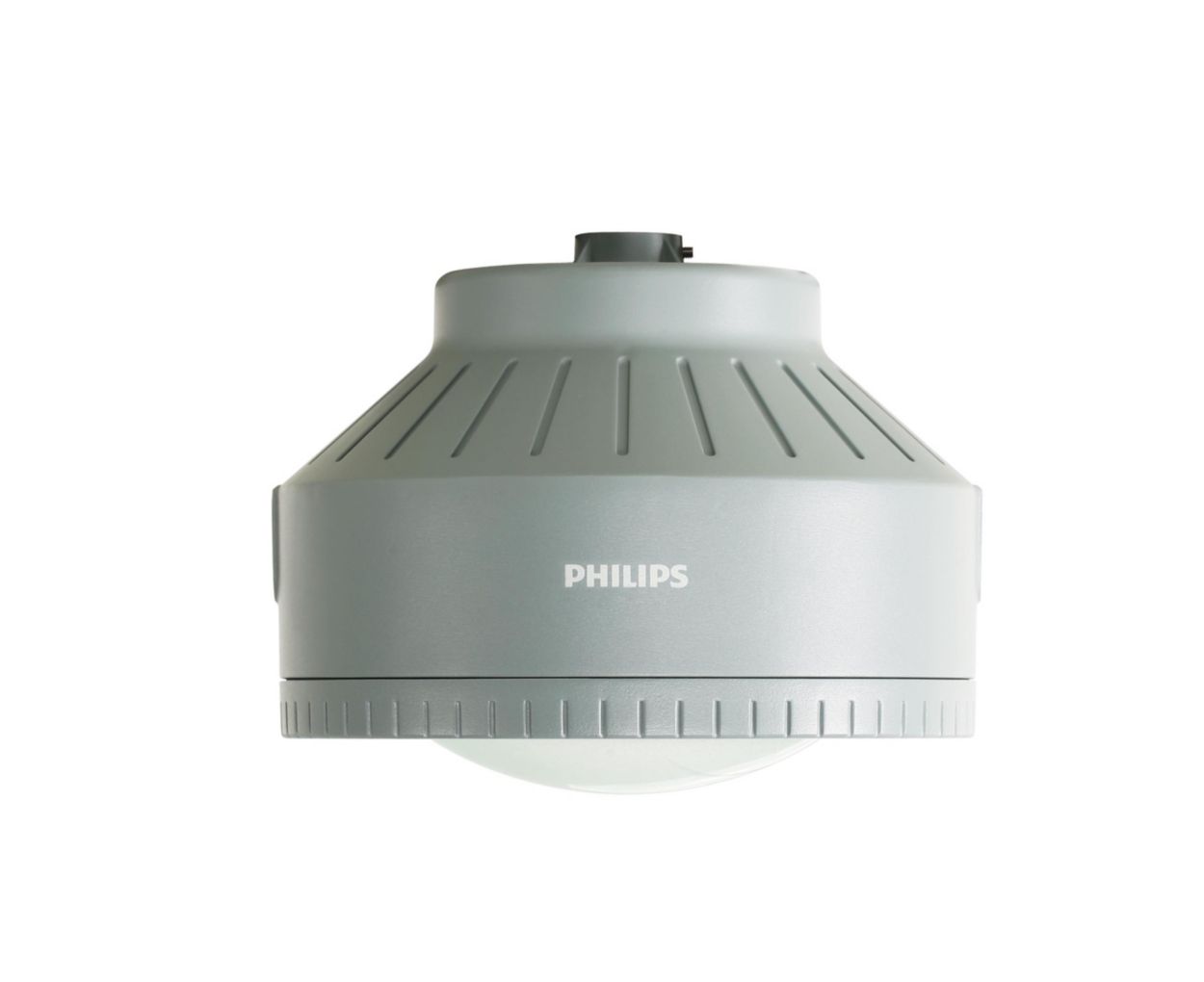

BY200P LED32 L-B/CW PSU

Specifications Show all

General information

Lamp colour code	865 cool daylight
Light source replaceable	No
Driver included	Yes
Optical cover/lens type	PCF  [ Polycarbonate bowl/cover frosted]
Luminaire light beam spread	120°
Control interface	-
Protection class IEC	Safety class I (I)
CE mark	-
Number of products on MCB (16 A type B)	24
EU RoHS compliant	Yes
Light source engine type	LED

Operating and electrical

Input Voltage	220-240 V
Input frequency	50 or 60 Hz
Inrush current	14.8 A
Inrush time	0.01 ms
Power factor (min.)	0.95

Controls and dimming

Dimmable

No

Mechanical and housing

Housing material	Aluminum die-cast
Optical cover/lens material	Polycarbonate
Optical cover/lens finish	Opal
Overall height	205 mm
Overall diameter	215 mm
Colour	Dark Grey

Approval and application

Ingress protection code	IP65  [ Dust penetration-protected, jet-proof]
Mech. impact protection code	IK08  [ 5 J vandal-protected]

Initial performance (IEC compliant)

Initial luminous flux (system flux)	3200 lm
Luminous flux tolerance	+/-10%
Initial LED luminaire efficacy	110 lm/W
Lamp colour temperature	6500 K
Colour Rendering Index	>80
Initial input power	29 W
Power consumption tolerance	+/-10%

Application conditions

Ambient temperature range

-30 to +50 °C

Product data

Full product code	911401512461
Order product name	BY200P LED32 L-B/CW PSU
Order code	911401512461
SAP numerator – quantity per pack	1
Numerator – packs per outer box	1
SAP material	911401512461
Net Weight (Piece)	2.300 kg
