| Output Current (Min) | 700
mA
|
| Maximum Efficiency at Full Load | 93
%
|
| Constant Current (CC) | True
|
| Output Current Tolerance (Max) | 5
%
|
| Output Power (Nom) | 124.6-250
W
|
| Number of Products on MCB (16A Type B) (Max) | 4
|
| Output Current (Max) | 700
mA
|
| Output Current Tolerance (Min) | -5
%
|
| Default output current | 700
mA
|
| Output Current (Nom) | 700
mA
|
| Input Frequency | 50 to 60
Hz
|
| Input Current (Nom) | 1.245
A
|
| Diagnostics | False
|
| Output Current Ripple (Max) | 15
%
|
| Output Voltage (Max) | 357
V
|
| Constant Voltage (CV) | False
|
| Inrush Current Width to 50% of Peak | 482
µs
|
| Output Voltage (Min) | 178
V
|
| Power Factor (Fraction) | 0.95
|
| Energy Metering | No
|
| Line Frequency | 50 to 60
Hz
|
| Inrush Current Peak (Max) | 53.4
A
|

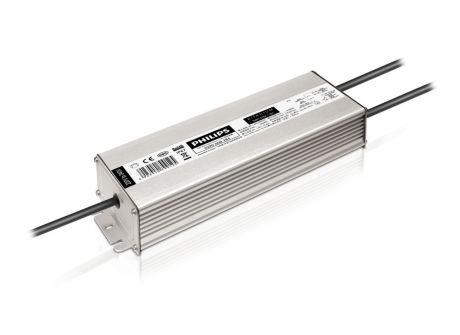

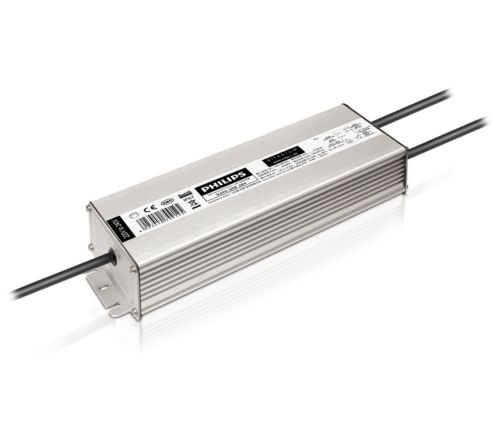

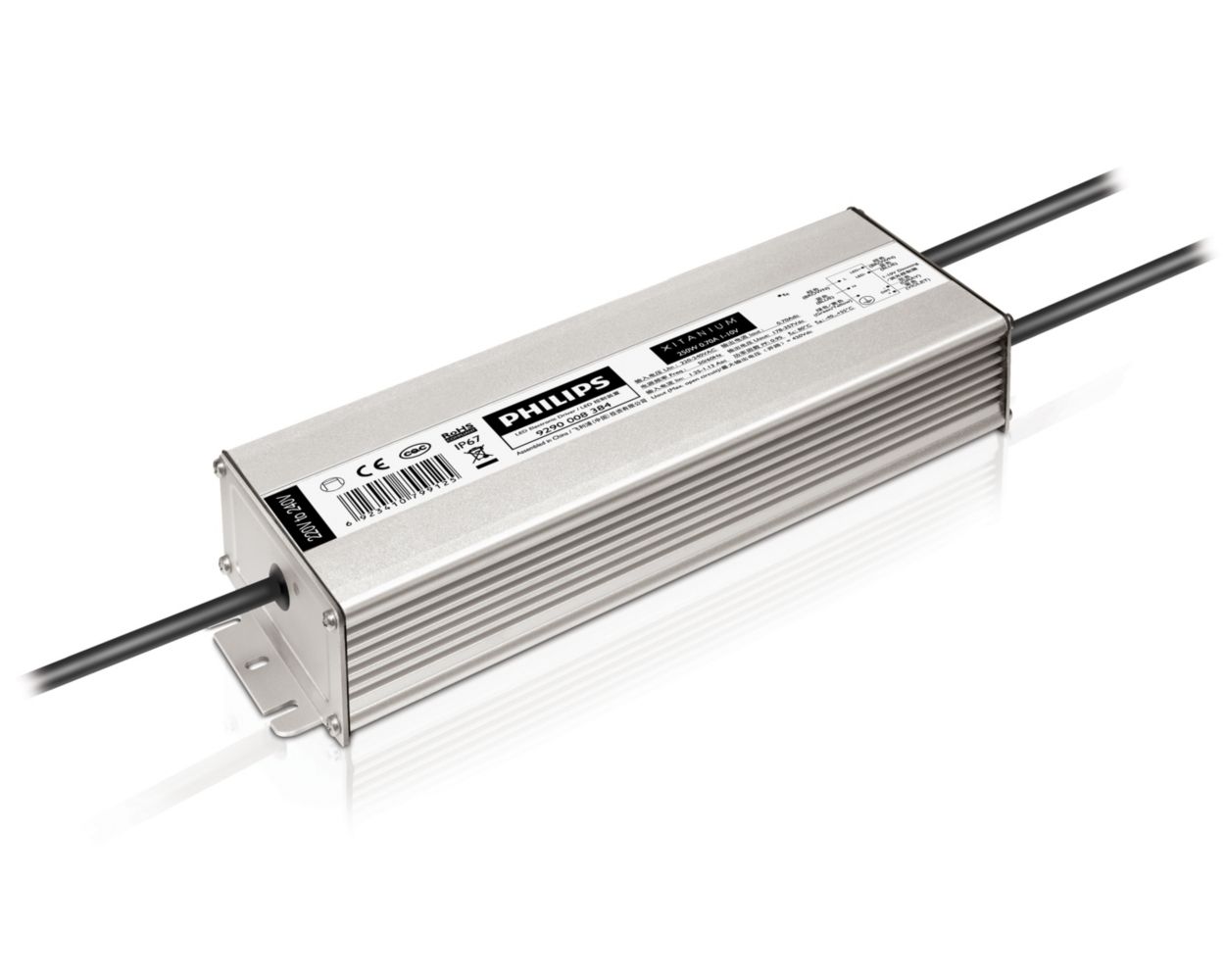

| Order product name | Xitanium Dim 250W 0.7A 1-10V 230V Q
|
| Full product name | Xitanium Dim 250W 0.7A 1-10V 230V Q
|
| Full product code | 694793916957300
|
| Numerator - Packs per outer box | 9
|
| Order code | 929000838508
|
| Material number (12NC) | 929000838508
|
| Numerator - Quantity Per Pack | 1
|
| EAN/UPC - Case | 6947939169580
|
| Relative humidity (storage) | 10-95
%
|
|
| Surge Protection (Common/Differential) | 4/4
kV
|
|
| Isolation Classification | Class I
|
|
| Over Power Protection | Protected
|
|
| Approval Marks | CCC certificate
|
CE marking
|
| Relative Humidity (Operation) (Max) | 95
%
|
|
| Open Circuit Protection | Protected
|
|
| Corridor Mode | False
|
|
| Short Circuit Protection | Protected
|
| Control Interface | 1-10V
|
| Dimming Range | 100-10
%
|
| Dimmable | Yes
|
| Lighting Technology | LED
|
| Housing | Q-can
|
| Connector Type Input Terminals | cable
|
| Cable Length From Device to Lamp | 0.6
m
|
| Output wire strip length | 9 mm to 10 mm
mm
|
| Input Wire Cross Section (Max) | 1.5
mm²
|
| Hot Wiring | No
|
| Output Wire Cross Section (Max) | 1.5
mm²
|
| Input Wire Cross Section (Min) | 0.25
mm²
|
| Connector Type Output Terminals | cable
|
| Output Wire Cross Section (Min) | 0.25
mm²
|
| Input wire strip length | 9 mm to 10 mm
mm
|
| Ambient temperature range | -40 °C to 55 °C
|
| T-Case Lifetime (Nom) | 70
°C
|
| T-Case Maximum (Max) | 80
°C
|
